Products
2U Index
Model Image Oveview

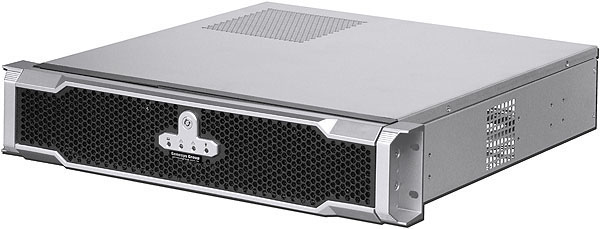

RKE239B Mechanical Dimension: 19" × 2U × 385mm (15.16" deep)
Supported MB: MicroATX (9.6" × 9.6"), Mini-ITX (6.7" × 6.7")
Supported PSU: PS2 power supply (8cm fan version)

RK2380G Mechanical Dimension: 19" × 2U × 380mm (14.96 inch deep)
Supported MB: MicroATX (9.6" × 9.6"), Mini-ITX (6.7" × 6.7")
Supported PSU: PS2 power supply (8cm fan version)

RK238 Mechanical Dimension: 19" × 2U × 380mm (14.96 inch deep)
Supported MB: MicroATX (9.6" × 9.6"), Mini-ITX (6.7" × 6.7")
Supported PSU: PS2 power supply(8cm or 12cm fan version)

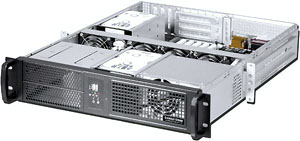

RK266B

Mechanical Dimension: 19" x 2U x 550mm (21.65" deep)
Supported MB:ATX(12" × 9.6"), MicroATX(9.6" × 9.6"), Mini-ITX(6.7" × 6.7")
Supported PSU: PS2 power supply(8cm fan version)

RK266LB

RK266LB Mechanical Dimension: 19" × 2U × 660mm (25.98 inch deep)
Supported MB:eATX EEB3.61(12" × 13"), ATX(12" × 9.6"), MicroATX(9.6" × 9.6"), Mini-ITX(6.7" × 6.7")
Supported PSU: PS2 power supply(8cm fan version)

C2EH Mechanical Dimension: 19" × 2U × 700mm (27.56 inch deep)
Supported MB: 12"(W) × 13"(D) E-ATX/SSI EEB 3.6 compliant MB
Supported PSU: 2U Redundant power supply

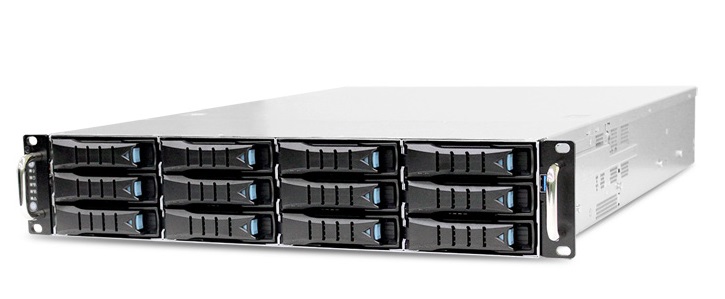

C2ET Mechanical Dimension: 19" × 2U × 645mm (25.4 inch deep)
Supported MB: 12”(W) x 13”(D) E-ATX/SSI EEB 3.6 compliant MB
Supported PSU: 800W 1+1 redundant PSU PMBus 1.2 80+ Gold

C2T LP Mechanical Dimension: 19" × 2U × 530mm (20.9 inch deep)
Supported MB: Up to 12"(W) × 10.5"(D) ATX/SSI CEB compliant MB
Supported PSU: PS2 power supply(8cm fan version)

C2T-3PCI Mechanical Dimension: 19" × 2U × 530mm (20.9 inch deep)
Supported MB: Up to 12"(W) × 10.5"(D) ATX/SSI CEB compliant MB
Supported PSU: PS2 power supply(8cm fan version)

C2A Mechanical Dimension: 19" × 2U × 431.8mm (17 inch deep)
Supported MB: Up to 12"(W) × 9.6"(D) ATX compliant MB
Supported PSU: 1U / 2U power supply

C2K Mechanical Dimension: 19" × 2U × 685.8mm (27 inch deep)
Supported MB: Up to 12"(W) × 13"(D) E-ATX/SSI EEB 3.6 compliant MB
Supported PSU: 2U Single / Redundant power supply

C2Q Mechanical Dimension: 19" × 2U × 685.8mm (27 inch deep)
Supported MB: Up to 12"(W) × 13"(D) E-ATX/SSI EEB 3.6 compliant MB
Supported PSU: 400~510W single PSU or 500W / 600W 1+1 redundant PFC

C2N Mechanical Dimension: 19" × 2U × 575.4mm (22.7 inch deep)
Supported MB: Up to 12"(W) × 10.5"(D) ATX/SSI CEB compliant MB
Supported PSU: 400~510W single PSU or 500W / 600W 1+1 redundant PFC

C2F

Mechanical Dimension: 19" × 2U × 685.8mm (27 inch deep)
Supported MB: Up to 12"(W) × 13"(D) E-ATX/SSI EEB 3.6 compliant MB
Supported PSU: 400~510W single PSU or 500W / 600W 1+1 redundant PFC

C2R Mechanical Dimension: 19" × 2U × 685.8mm (27 inch deep)
Supported MB: Up to 12"(W) × 13"(D) E-ATX/SSI EEB 3.6 compliant MB
Supported PSU: PS2 power supply(8cm fan version)
