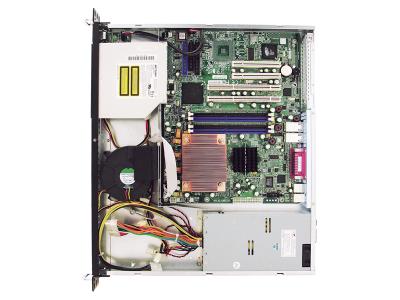

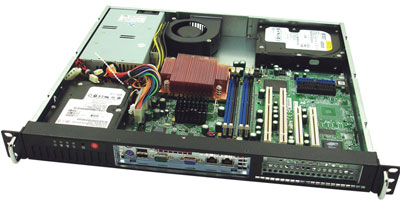

45" View | Front View | Top View | Rear View

* Optional: Front IO version also available

Model: IPC C1E 1U Chassis

C1E is an entry-level 1U appliance chassis with 14.5? depth for space-sensitive applications, such as Network & Security appliance, firewall, VPN, Telephony and military applications. Standard ATX size (9.6" x 12") motherboard can be populated into this appliance chassis. RAC1E-R01 is a cost-effective appliance chassis that provide lower TCO (total cost of ownership) to IT professionals for higher ROI.

Specifications
Model:	IPC C1E
Industry Standard:	EIA-RS310D
Materials:	Heavy-duty SPGC preplated cold-rolled steel
Color:	Front Panel : Black
Dimensions: (W x D x H)	mm: 482.6 x 381 x 44.4
	inches: 19 x 15 x 1.75
Cooling:	Front : 1 x 97mm blower (optional 3 x 40x20mm fans or 3 x 40x28mm fans or 2 x 40x56mm fans)
Power Supply:	250W~300W ATX/EPS
Expansion:	1 x PCI slot via riser card (full height, half length)
Controls:	Power on/off, system reset, and 2 x USB ports
Indicators:	Power, 2 x LAN, and HDD LEDs
Drive Bay:	Internal	3.5" HDD	2
	Peripheral Drives	Slim DVD-Rom	1
Temperature:	0°C (32°F)~50°C (122°F)
Humidity:	5%~95% non-condensing
Gross Weight:	7 kgs / 15.4 lbs (w/ PSU; w/o Rail)
Package Dimension:	(W x D x H): mm: 548 x 574 x 173
Riser Card Options	Riser Cards
CPU Cooler Options	1U CPU Coolers
Mounting Options	CLM-882052B: 20" Sliding Rail + Brackets GNS-1234RMK: Rear Mounting Kit 300mm Depth
