Form Factor

Dimensions

- Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)

 Processor System

CPU

- Intel® Braswell – N3160 Processor

Core Number

- 4

Max Speed

- 2.24GHz

L2 Cache

- 2M

Chipset

- SoC

BIOS

- AMI 64Mb Flash ROM

 Expansion Slot

Mini-PCIe

- 1 (full size)

mSATA

- 1 (full size)

PCIe

- 1 (x1)

SIM card holder

- 1

 Memory

Technology

- 1 * DDR3L 1600 MHz SDRAM

Max.

- 8GB

Socket

- 1 * SO-DIMM

 Graphics

Controller

- Intel® HD Graphics

VRAM

- Shared Memory

VGA

- 0

DVI-D

- 1 ( DVI-D, Max. Resolution : 1920 * 1080@60Hz)

LVDS

- 1 ( 24-bits Dual Channel, Max. Resolution : 1920 * 1080@60Hz)

HDMI

- 1 (Max. Resolution : 1920 * 1080@60Hz)

MultiDisplay

- Yes ( Triple Independent Display )

 Ethernet

Ethernet

- 10/100/1000 Mbps

Controller

- PCIe GbE LAN : Realtek RTL8111G

Connector

- 2 * RJ 45

Audio

CODEC

- HD Audio : Realtek ALC662VD

Channel

- 4 Channel

 SATA

Max Data Transfer Rate

- 1 * SATAIII (6.0Gb/s)

RAID

- No

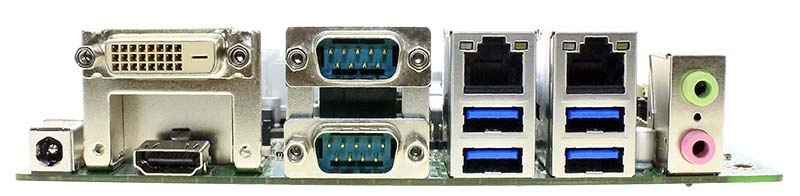

 Rear I/O

VGA

- 0

DVI-D

- 1

HDMI

- 1

Ethernet

- 2

USB

- 4 * USB 3.0

Audio

- 1

Serial

- 2 (1 * RS232, 1 * RS232/422/485 with 5V/12V selectable header)

PS2

- 0

DC-input

- 1 * 12V DC-in

 Internal Connector

VGA

- 0

USB

- 3 * USB 2.0

LVDS / inverter

- 1

Serial

- 4 * RS232 with 5V/12V selectable header

SATA

- 0

mPCIe

- 1 (full size)

mSATA

- 1 (full size)

M.2

- 0

SIM card holder

- 1

Chassis intrusion

- 1

PS/2

- 1

GPIO

- 1 ( 4in/4 out)

SMBUS/ I2C

- 1 ( I2C)

Audio Header

- 1 ( Line-out & MIC)

Audio Amplifier Header

- 0

AT mode

- 1

 Watchdog Timer

Output

- From Super I/O to drag RESETCON#

Interval

- 256 segments, 0,1,2…255sec/min

 Power Requirements

Input PWR

- +12V DC-in PWR jack

Power On

AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Certifications

Certifications

- CE, FCC, RoHS, REACH

 Environment

Temperature

- Operating: 0°C – 60°C

- Storage: -20°C – 85°C
