Features
  • Intel® Bay Trail D/M/I Processor
  • Support 1 * DDR3L 1333/1066MHz Single/Dual CH up to 4GB/8GB
  • Support 1 * Serial ATAII (3Gb/s) Device
  • Integrated Realtek ALC662 HD Audio CODEC with 2-CH
  • 1 * SIM card holder
  • Support DVI-D Output
  • Supports 2 * Realtek RT8111G PCIe Gigabit LAN
  • Support CPU Smart FAN
  • Support Watch Dog Timer 0~255 sec
  • +9~24V DC-In PWR jack
  • Dimension: 148 * 102mm
  • 3.5” SBC Form Factor

Overview

Form Factor

Dimensions

- 3.5” SBC ( 148 * 102 mm )

 Processor System

CPU

- Intel® Bay Trail D/M/I Processor (default N2930 Celeron Processor)

Core Number

- BY CPU

Max Speed

- BY CPU

L2 Cache

- BY CPU

Chipset

- SoC

BIOS

- AMI 64Mb Flash ROM

 Expansion Slot

PCI

- 0

Mini-PCIe

- 1 (full size, shared with mSATA) + 1 (half size)

mSATA

- 1 (shared with full size Mini PCIe)

PCIe

- 0

CFast Card Socket

- 0

CF Card Socket

- 0

 Memory

Technology

- Single/Dual Channel DDR3L 1333MHz SDRAM (By CPU)

Max.

- 4GB/8GB

Socket

- 1 * SO-DIMM

 Graphics

Controller

- Intel® HD Graphics

VRAM

- Shared Memory

VGA

- 1 (internal)

LVDS

- 0

HDMI

- 0

DVI-D

- 1

DisplayPort

- 0

MultiDisplay

- Yes (Dual Display)

 Ethernet

Ethernet

- 10/100/1000 Mbps

Controller

- GbE LAN: Realtek RTL8111G

Connector

- 2 * RJ 45

 SATA

Max Data Transfer Rate

- 1 * SATAII (3.0Gb/s)

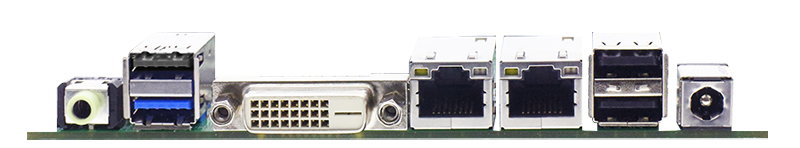

 Rear I/O

VGA

- 0

DVI-D

- 1

HDMI

- 0

DisplayPort

- 0

Ethernet

- 2

USB

- 4 (3 * USB 2.0 + 1 * USB 3.0)

Audio

- 1 (Line -out)

Serial

- 0

eSATA

- 0

PS2

- 0

DC-input

- 1

 Internal Connector

USB

- 4 ( 4 * USB 2.0 via 10pin header )

PS2

- 1

LVDS / inverter

- 0

VGA

- 1

Serial

- 4 (3 * RS-232, 1 * RS232/422/485 with 5V/12V selectable header)

SATA

- 1 * SATAII (3.0Gb/s)

mPCIe

- 1 (full size, shared with mSATA) + 1 (half size)

Parallel

- 0

mSATA

- 1 (shared with mPCIe)

CIR

- 0

SIM card holder

- 1

GPIO 8-bit

- 4in / 4 out

Chassis intrusion

- 1 (via 2pin header)

Audio Header

- 1 ( Line-out & MIC )

HDMI-SPDIF

- 1

SMBUS/ I2C

- 1

AT mode jumper

- 1

 Watchdog Timer

Output

- From Super I/O to drag RESETCON#

Interval

- 256 segments, 0,1,2…255sec/min

 Power Requirements

Input PWR

- +9~24V DC-In (2-pin PWR Con)

Power On

AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready

Certifications

Certifications

- CE, FCC, RoHS, REACH

 Environment

Temperature

- Operating: 0– 60

- Storage: -20– 85
