Model: IPC-JBSA21S-3163-50RS

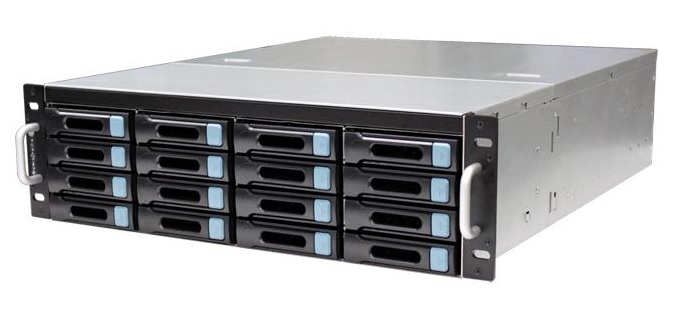

The 3U 16-bay 6G hot-swap JBOD is ideal for high-availability storage and high performance appliance. This enclosure supports two 6G expander modules for redundancy and 16x 6G (backplane support) SAS/SATA hard disk bays. It’s the perfect appliance building-block for OEM/ODM and System Integrators.

Key Features

  • High performance and scalability
  • External port self-configuration to host or expansion
  • Hot swappable design for easy maintenance and use
  • Short depth design
  • Adjustable Thermal Profile
  • Easy deployment
Specifications

GENERAL
Number of Expander Single/Dual
Expander Chip LSISAS 2x36

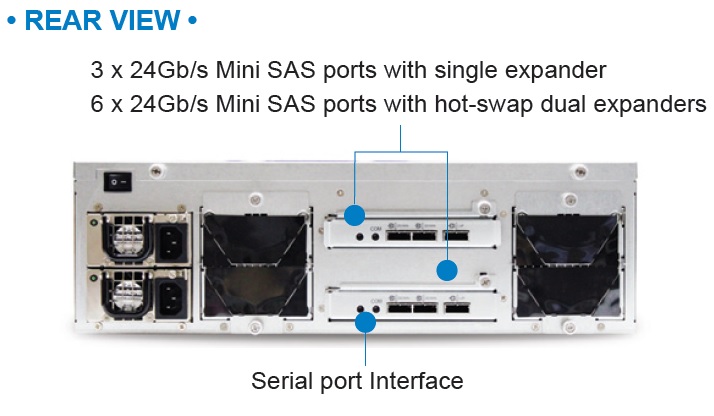

Host/Expansion Interface 3 x Mini SAS (SFF-8088) per expander tray
DRIVES SUPPORTED
Drive Interface 3.0/6.0 Gb SAS dual expander
3.0/6.0 Gb SAS/SATA single expander
Form Factor 3.5”, 1” height
ADMINISTRATION / MANAGEMENT
Admin/Firmware Upgrade Serial port Interface
LED Indicators Yes
HOT-SWAP & REDUNDANCY

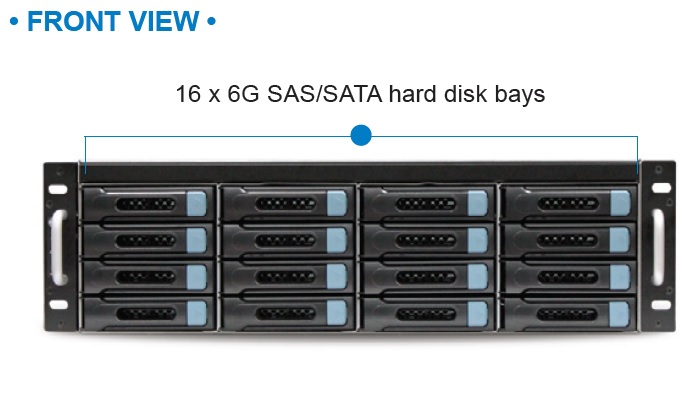

Disk Drive Hot-swap 16-bay

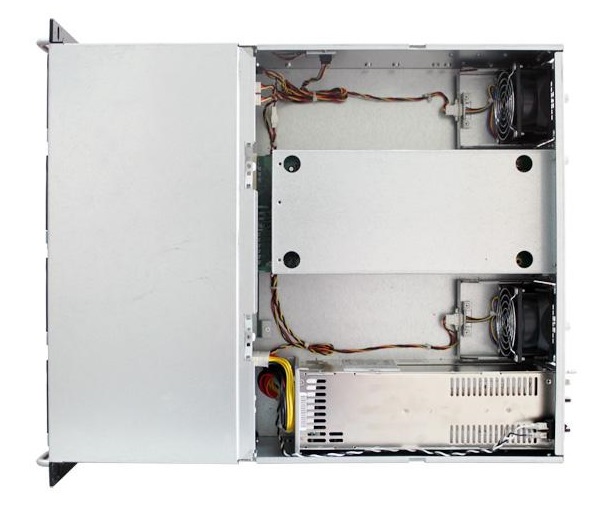

Cooling 2 x 8038 hot-swap fans
Power Supply 549W 1+1 hot-swap redundant 80+ (Platinum)
Power Entry Dual AC Inlet
Expander Dual expanders
ELECTRICAL & ENVIRONMENTAL
Universal A/C Input 100~240V AC full range
Operating Environment Temperature 0ºC to 35ºC
Relative humidity 20% to 80%
Non-operating Environment Temperature -20ºC to 60ºC
Relative humidity 10% to 90%
PHYSICAL SPECIFICATION
Dimensions (W x D x H)
mm: 482.6 x 533.2 x 132.5, inches: 19 x 21 x 5.25
Gross Weight 28 kgs / 61.7 lbs (w/ packaging)
Packaging Dimension (W x D x H) mm: 590 x 785 x 335, inches: 23.2 x 31 x 13.2
Mounting Option Adjust plate or 20” tool-less rail (optional)
