Products



Image for display purposes only

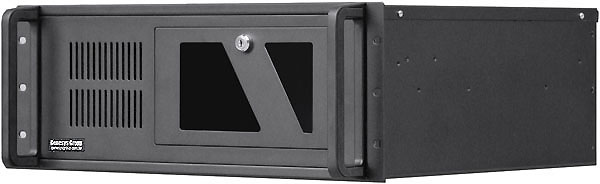

Model: IPC-RK-450B 4U Chassis

The C450 chassis's major feature is the 450mm depth which is quite compliant and easier to be installed in a space limited cabinet server room. The whole mechanism constructed by the extremely durable SGCC sheet metal 1.2mm ~ 2.0mm thickness, all the cut-out sides of sheet metal protected by the smooth non-burr engineering, and the supreme quality guaranteed by the global 3 years warranty. The high qualified metallurgy die-casting handles also provide the rugged strength for the front bezel very well. In addition to the standard 12"x9.6" ATX motherboard form factor compatible, it's also designed and equipped with high-end and costly mechanical anti-vibration springs so that can enhance the life time of all 5.25" and 3.5" devices. Its flexible and durable design can meet multiple platforms as well as the long-term maintenance.
Specifications

Model: IPC-RK-450B
Material: All extremely durable and high qualified SGCC sheet metal 1.2mm ~ 2.0mm thickness
Dimensions (W × H × D) 19" × 4U × 450mm (17.72" deep)
Cooling: 1 × 120mm × 25mm intake fan behind the front bezel & removable dust-proof filter
2 × exhaust 80mm × 25mm fans installed above the I/O shield of rear panel
Power Supply: Standard PS2 power supply(max. power depth up to 220mm)
Expansion: Meet 7 slot full high cards (max. 190mm deep if HDD installed, max. 240mm if no HDD)
Controls: Power on/off, system reset and 2 × USB 2.0 parts behind the front lockable doorremovable hold-down card holder by three upward & downward clamps
System Board: ATX(12" × 9.6"), MicroATX(9.6" × 9.6"), Mini-ITX(6.7" × 6.7")
Drive Bay: 5.25" CD 2
3.5" HDD 8
* All drive bay designed and equipped with high-class mechanical anti-vibration springs
Package NW 11.00 KG, GW 13.10 KG, 2.99 CUFT (58 × 54 × 27cm, single box packed)
Mounting Options: CLM-882054B: 20" Slinding Rails + Bracket
CLM-882054B-26: 26" Slinding Rails + Bracket
Backplane Module Options SNT-1041SS: 4×2.5" SAS & SATA HDD/SSD in 1×5.25" Bay, hot swappable.
SNT-1060SATA: 6×2.5" SATA HDD/SSD in 1×5.25" Bay, hot swappable.
SNT-2131SS: 3×2.5/3.5" SAS & SATA HDD/SSD in 2×5.25" Bay, hot swappable.
