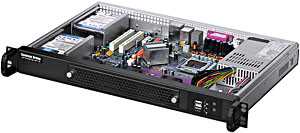

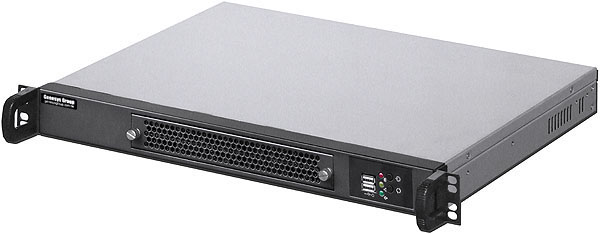

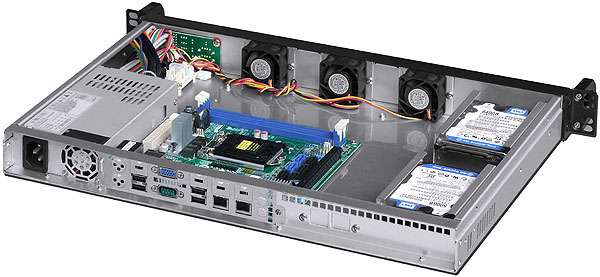

Model: RK-130B 1U Chassis





Specifications

Drive capacity: four 2.5" HDD/SSD, 7mm~15mm height compatible

* Two USB 2.0 ports at front bezel. One Dual GigaLAN module at rear panel as option
* Equipped with 3 brand new low noise 40mmx20mm intake fans (fan part# D40SM-12C)
* Room noise without 3 fans activated is 41dBA, tested by 10cm distance to running fans
is 65dBA (including room noise)

* Equipped with quick release dust filter cover, effective dust control & quick maintenance
* Equipped with 3pin fan wire PCB which simplified fan connectors routing management
* Compatible motherboard: MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* Various 1U I/O shield available (option, developing more items daily)
* Support standard 1U FlexATX 250W~300W power supply (max. psu depth: 150mm)
* SGCC sheet metal by 1.0mm~2.0mm thickness with protective sheet on surface
* Standard paint: scratch-resistant black textured at front
* Chassis dimension: 19" x 1U x 300mm (11.81" deep)
* Accessory pack: M3 round head screw x17, #6 round head screw x17
* Package: NW 4.0 KGM, GW 5.0 KGM, 1.09 CUFT (55x43x13cm, one box packed)
