| Specifications | |
| Model No | JBC373F38-525-NB |
| CPU | Intel® Pine Trail-D Processor D525 |
| Chipset | Intel® ICH8M Express chipset |
| Memory | 1 × DDR3 800/667MHz Single CH SO-DIMM up to 2GB |

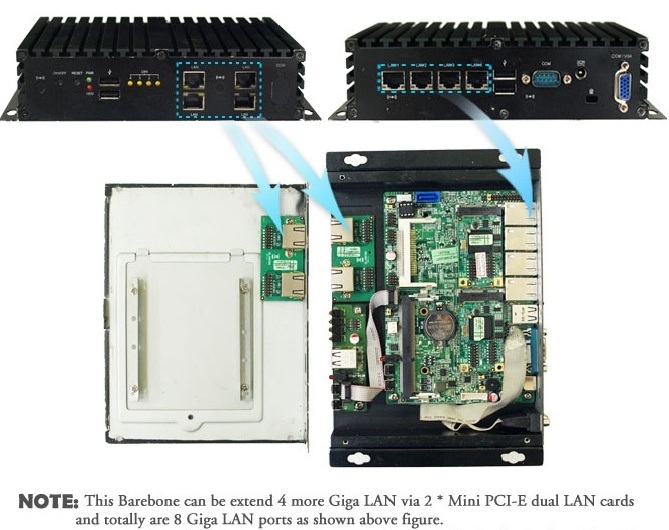

| Expansion Slots | 2 × Mini PCI-E |
| LAN | 4 × Realtek RTL8111EVL PCI-E Gigabit Ethernet LAN |
| Storage | 1 × Serial ATA2 3Gb/s connector 1 × CF card socket (Support CF or CF SATA card) 1 × mSATA socket (Shared with one Mini PCI-E socket) |
| BIOS | AMI 16MB SMT Flash ROM |
| Form Factor | 3.5" SBC (148mm × 102mm) |
| Product size | 180 (W) × 142 (D) × 48 (H) mm |
| Specs Devices | 1 × 2.5" HDD Drive Bay (Only support SATA 2.5"HDD) |
| Colors | Black |
| Front I/O Port | 1 × Power button & 1 × Reset button 1 × Power LED & 1 × HDD LED 2 × USB 2.0 ports 4 × NIC LED's 4 × LAN ports (optional) |
| Rear I/O Port | 2 × USB 2.0 ports 1 × 12V DC jack 4 × RJ-45 port(Gigabit LAN) 1 × Kensington hole 2 × Antenna holes 1 × VGA 1 × COM port |
| Power supply | +12V DC-IN Power |
| Accessory | 60W AC-DC Adapter × 1 Power Cord × 1 CD × 1 Manual × 1 COM cable × 1 Wall Mount Bracket × 2 LCD VESA Mount Bracket × 1 (Optional) |
| Application | Networking Appliance, Set Top Box, Thin Client |
